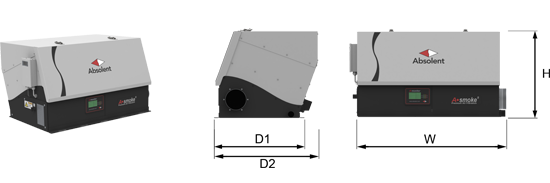

The Absolent type A•smoke5 oil smoke filter is a compact, machine-mountable filter unit specialized in oil smoke. It is part of the A•smoke filter series that features one of the most effective systems in the world for cleaning oil mist and oil smoke. A•smoke5 is especially well suited for small, high-speed metal working machines that use oil or emulsion. The filter unit is designed for air flows up to 294cfm.
The highest possible collecting efficiency for safe and pleasant working conditions
The filter unit has 4 filter steps. Includes a hepa filter that guarantees a constant separation degree of 99.97% at 0.3μm.
» Designed for oil smoke.
» Energy-efficient fan with airflow guarantee
» Its small and compact design makes A•smoke5 easy to place
The filter unit is small and lightweight, making it ideal for placement on top of a machine, even small production machines. In some cases, it is even possible to integrate it into the machine.
| A•smoke5 Technical Data | Metric | Imperial |
|---|---|---|
| (H) Height | 520 mm | 20.5 in |
| (W) Width | 900 mm | 35.4 in |
| (D1) Depth footprint | 540 mm | 21.3 in |
| (D2) Total depth | 620 mm | 24.4 in |
| Inlet duct Ø | 125 mm | 4.9 in* |
| Weight with dry filters | 70 kg | 154 lbs |
| Motor output | 0,36 kW | 0.48 hp |
| Max. airflow | 500 m³/h | 294 cfm |
*Inlet duct not included for the US market
