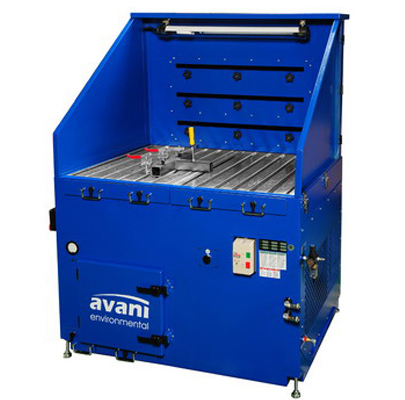

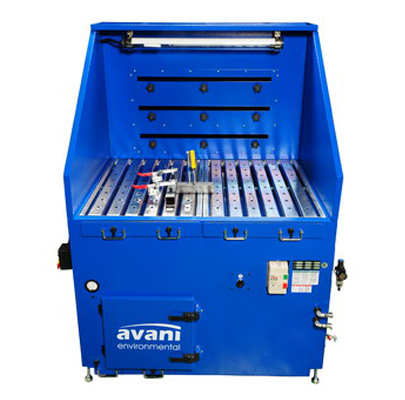

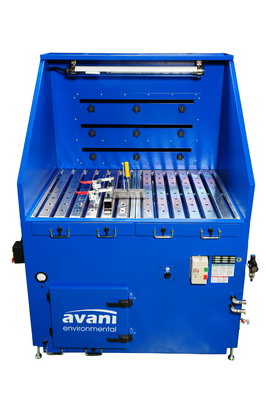

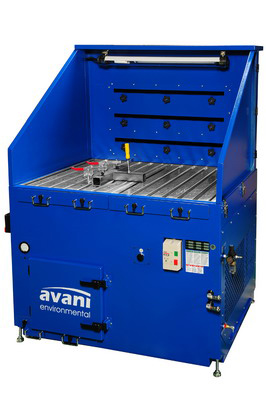

The SDT-3 / SDT-5 downdraft table is Avani’s newest design with the welder in mind, featuring backdraft and downdraft exhaust and explosion proof lighting. This table is a great choice for plasma processes with heavy smoke. It utilizes a two-phase filtration system.
Standard Features:
- High Efficiency Re-usable Filter Cartridge
- Heave Gauge Powder Coated Steel
- Accepts 5/8" Jig Fixtures
- Manual Reverse Jet Pulse Cleaning
- UL Approved Control Panel

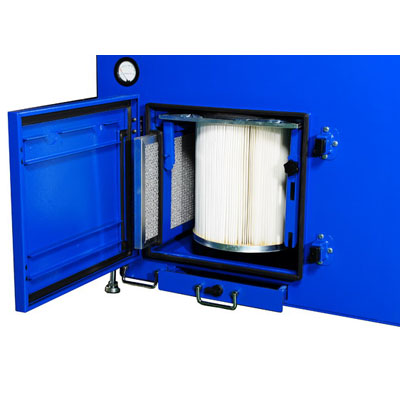

- Easy Access Filter Doors
- 2 Electrical Outlets
- Differential Pressure Gauges
Optional Features:
- Explosion Proof Light
- Exhaust 80% back draft and 20% downdraft
- Explosion Proof Vents
- Different Filter Media
- Silencers: inlet and outlet
- Rotary Air Lock

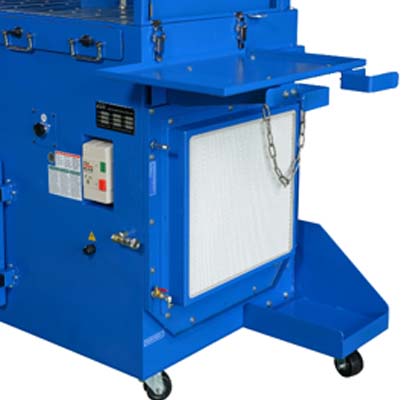

- Welding machine shelf
- Gas tank shelf

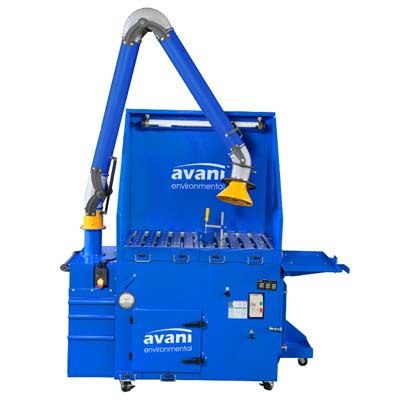

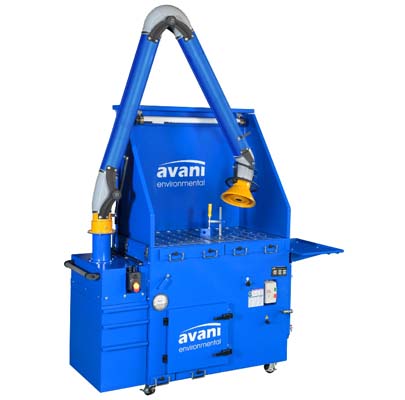

- Fume arm addition
- Customized Colors

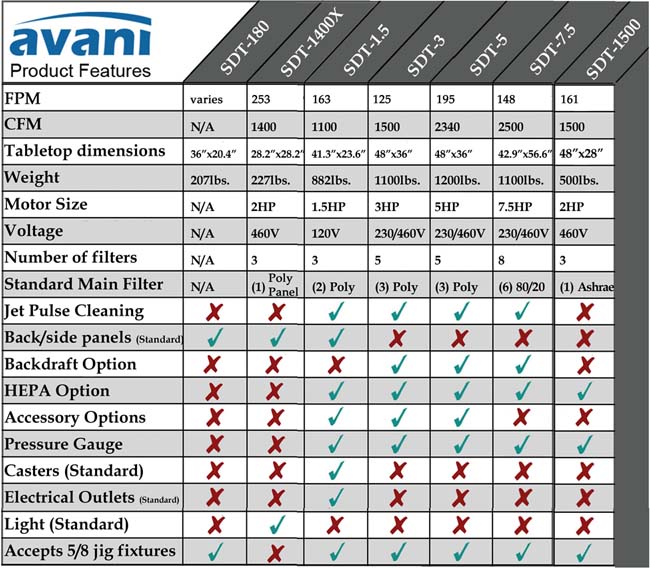

Specification SDT-3:
- Nominal Air Flow: 1500 cfm
- Motor: 3 HP NEMA, Aluminum Impeller
- Compressed Air Requirement: 90 PSI
- Dimensions: 58"x47"x71"
- Weight: 1100
Specification SDT-5:
- Nominal Air Flow: 2340 cfm
- Motor: 5 HP NEMA, Aluminum Impeller
- Compressed Air Requirement: 90 PSI
- Dimensions: 58"x47"x71"
- Weight: 1200
