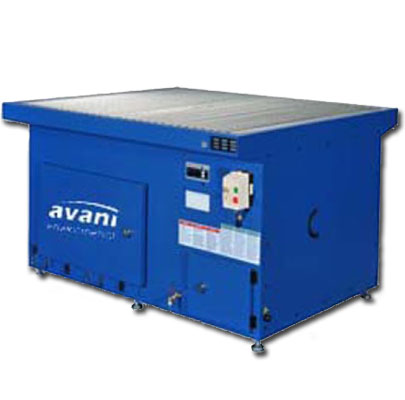

The SDT-7.5 features a removable grated table top and reverse jet pulse cleaning. It comes standard with a direct drive, backward inclined blower with an output of 2500 CFM and can be customized to fit your application's needs.
Specification:
- Nominal Air Flow: 2500 CFM
- Motor: 7.5 HP TEFC NEMA
- Motor Power Supply: 460V / 60 Hz / 3 Ph
- # of cartiridges: 6 teflon-coated polyester cartridge at 99.9% @ 1 micron
- Heavy Gauge powder coated steel
- Reverse Jet Pulse Cleaning
- UL approved control panel
- Easy access filter doors
- Venturis for high efficiency cleaning
- Differential pressure gauges
Options

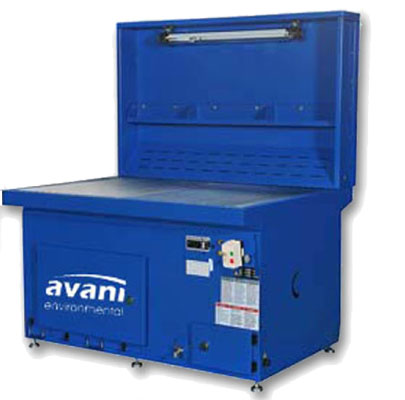

- Back draft & side walls
- Explosion proof vents
- Stainless steel construction
- Silencers: inlet and outlet
- Rotary air lock
- Power tool outlets
- Assembly with lights
