Stretch of  YouTube channel ChuckE2009 demonstrates and reviews the Avani SPC-2000



SPC-2000

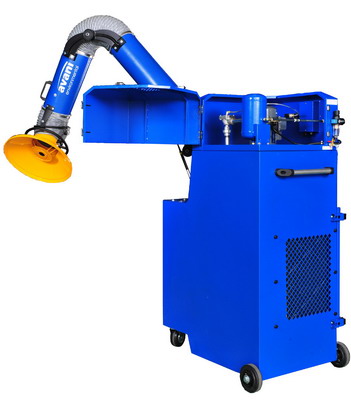

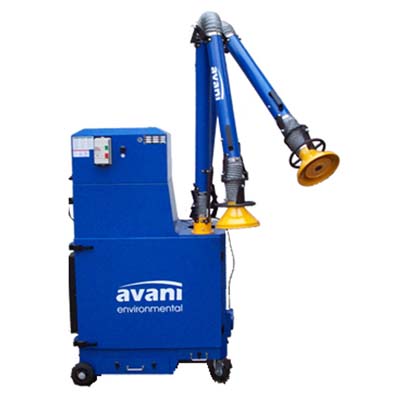

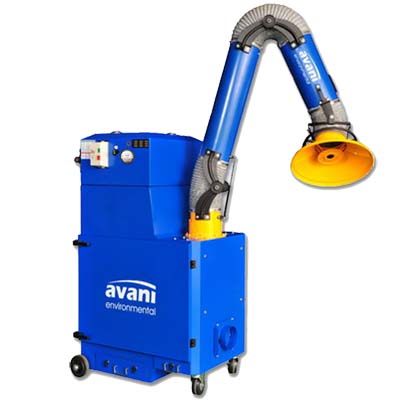

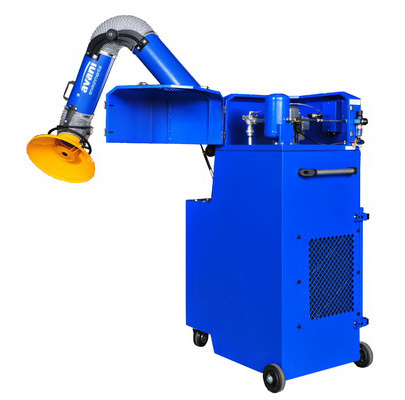

Avani’s SPC-2000 portable air cleaner is designed to exhaust and filter dry air impurities. It combines a high efficiency motor with an aggressive aluminum impeller, allowing for increased filter media mass and even greater air flow (CFM) at the point of extraction. This product with its highly efficient filtering system makes it a perfect choice for welding, grinding, polishing, metal cutting, plastic production and many other fume extraction applications.

Specifications
Standard
Optional
Literature

Specifications

  • Air Flow: 1100 CFM
  • Motor: 1.5 HP TEFC NEMA, Single Phase, 60 Hz
  • Dimensions: 43.5" l x 31" w x 66" h
  • Packing dimensions: 46.9" l x 35" w x 70.9" h
  • Noise Level: 77 dBa @ 3.25'
  • Net Weight: 441 lbs



Standard Features

  • Three Stage Filtration System
  • Manual pulse jet cleaning system
  • Powder coated (custom colors available)
  • UL Approved Push Button Control Box
  • High Efficiency, Fully Enclosed Motor with Aggressive Aluminum Impeller
  • Minihelic Static Pressure Gauge
  • Wheels for easy movement

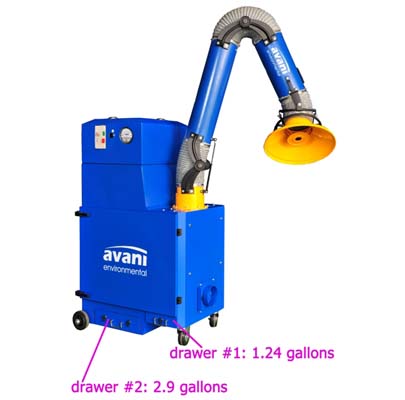

  • Dust entrapemnt tray

Optional Features

  • Fume Arm Choice #1: 4 in diameter at 5, 7, or 8.5 ft lengths
  • Fume Arm Choice #2: 6 in diameter at 7 or 10 ft lengths
  • Fume Arm Choice #3: 8 in diameter at 7, or 10 ft lengths
  • Air Pressure Gauge
  • HEPA Filter (for hexavalent chromium)
  • Polyester Spun Bond Filter Cartridge
  • Carbon Exhaust Filter
  • Halogen Light Kit
  • Three-Phase Motor
  • Oversized Casters
  • Oversized Hood
  • Activated Carbon Filter

Portable Fume Collector Comparisons

click for portable collector comparisonclick for portable collector comparison

Product Booklet

Product Booklet Cover front page.jpg
