Features:
- All Welded Construction
- Powder coat finish
- On-line self cleaning
- Integrated Control Panel
- Direct drive, backward inclined fan
- Static Pressure Gauge
- 80/20 FR cartridge media
- Internal silencer fan housing
- Built-in fork-lift slots and lifting lugs
- Goyen valve
Optional:
- HEPA after filter
- Outdoor Cover
- Fire Suppressant System
- VOC Filtration
- Wired at 230V

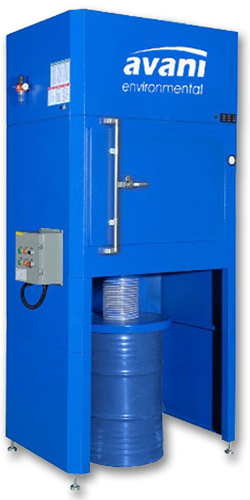

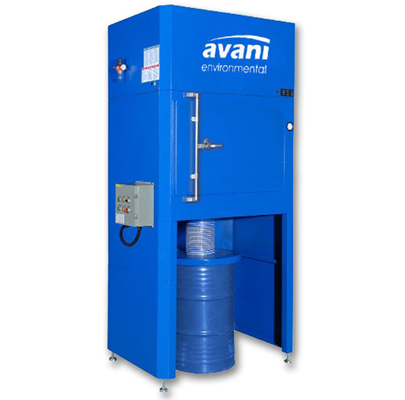

ACC-5D Specifications:
- Motor: 5 HP
- Nominal Air Flow: 2340 CFM
- # of Cartridges: 4 or 6
- Drum Size: 55 Gallon
- Dimension
- ACC-5D-4: 64" x 42" x 121"
- ACC-5D-6: 89" x 42" x 121"
