Avani Environmental

SPC-MINI

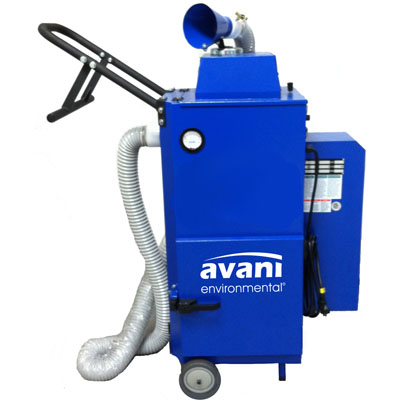

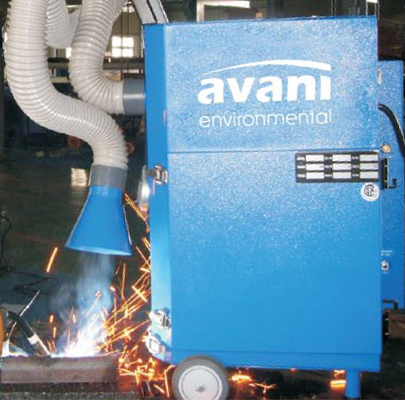

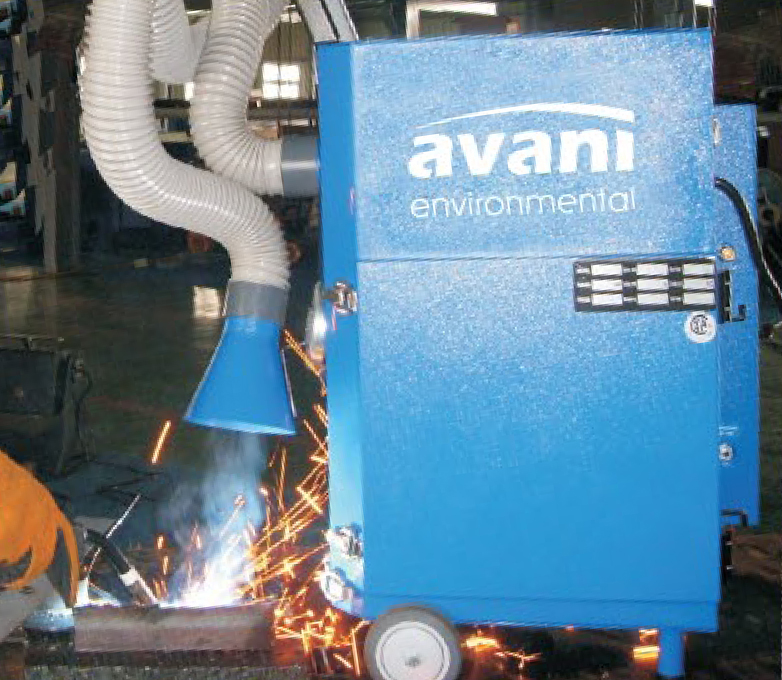

Avani’s SPC-Mini is a light duty, compact user friendly fume extraction system. The unit’s magnetic hood and 10’ hose make it ideal for point of origin extraction use in confined spaces and any work area requiring fume control. The three stage filtration system delivers high efficiency filtration and favorable filter life cycles by providing both washable and reverse pulse cleaning elements. 120 volt electrical power, light weight and wheeled cart make the unit extremely portable and the perfect choice for welding, soldering and many other fume removal applications throughout your facility.

Specifications
Features
Literature

Specifications

Specifications:

  • Air Flow: 230 CFM
  • Motor Power: 800W x 2Pcs
  • Dimensions: 20.3" w x 17.6 d x 44.4" h
  • Noise Level: 79 dBa @ 3'
  • Net Weight: 90.4 lbs
  • Packing Size:  22.6" w x 18.9" d x 30" h

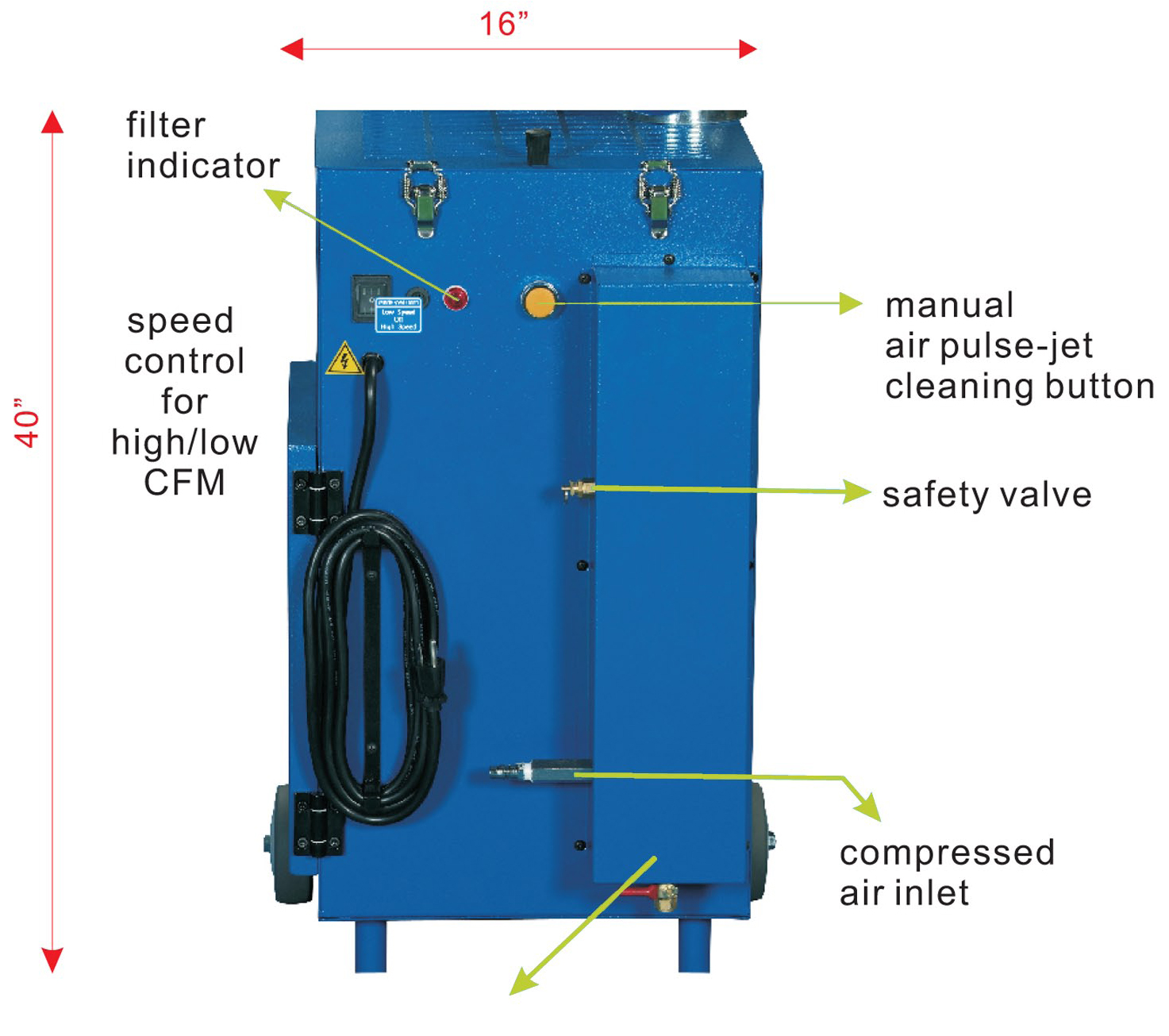

Features

  • 3 Layers of High Efficiency Filtration
  • Powder coated
  • Lightweight and portable
  • Variable speed control
  • Differential pressure gauge
  • Silencer
  • Manual reverse pulse filter cleaning

Product Booklet
