The WB-3500 welding booth is constructed of heavy (12 gauge) dual panel walls with both updraft and back-draft. Vacuum flow can be sourced from a stand alone filtered collector or a top mounted collector integral to the booth(s). This booth is available in both single or dual configuration and comes standard with overhead explosion proof lighting and debris clean-out drawers. This is Avani's only "stand in front" booth with an optional fully enclosed wrap-around curtain.
Models:

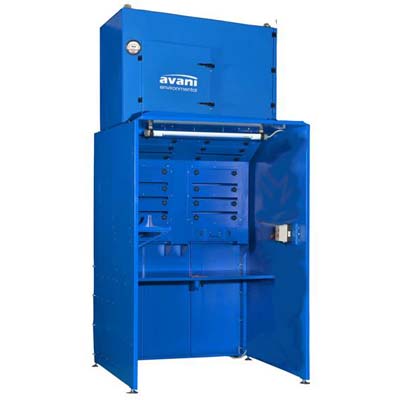

- WB-3555-S: 5' x 5' single booth with collector

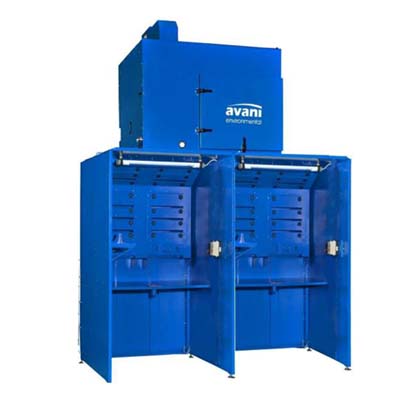

- WB-3555-D: 5' x 5' double booth with shared collector
- WB-3566-S: 6' x 6' single booth with collector
- WB-3566-D: 6' x 6' double booth with shared collector
Standard Features:
- Double panel wall construction
- Integral top mounted collector
- Back draft and up draft capability with dampers for adjusting air flow
- Overhead drop down explosion proof lighting
- Adjustable rear shelf
- Electrical/Gas outlets
- Debris clean out drawer
- Adjustable leveling feet
- Differential pressure gauge knows when to replace filters
- Reverse jet pulse cartridge cleaning
- Front filter access
Optional Features:
- Welding curtain
- Lazy susan for rear shelf
- J Hooks
- Welder shelf
- VFD
Note: Booths share a common interior panel. Booths can be mounted back to back and/or side to side. Based on configuration will share common walls.
