SPC-1000

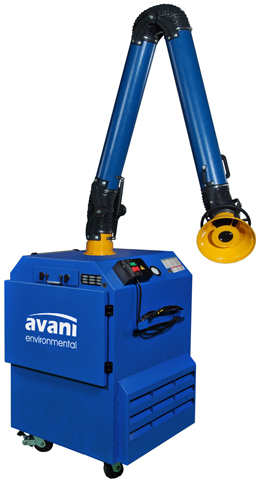

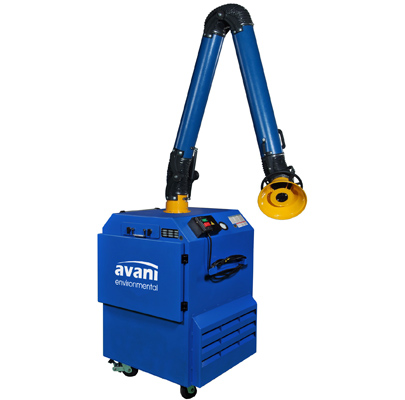

Avani’s SPC-1000 is a portable user friendly fume extraction filtration unit, designed for “point of origin” extraction at any work area. It combines a high efficiency motor with an aggressive aluminum impeller, for increased air flow (CFM) at the point of extraction. This product with its highly efficient three stage filtering system makes it a perfect choice for welding, grinding, polishing, metal cutting, plastic production and many other fume extraction applications.

Specifications
Standard
Optional
Literature

Specifications

  • Air Flow: 1100 CFM
  • Motor: 1.5 HP TEFC, Single Phase, 60 Hz
  • Dimensions: 39" l x 28" w x 46" h
  • Packing Dimensions: 34" l x 29" w x 55" h
  • Noise Level: 77 dBa @ 3.25'
  • Net Weight: 350 lbs



Standard Features

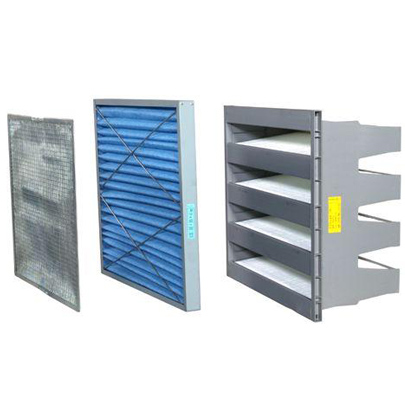

  • Four Stage Filtration System
  • Powder coated (custom colors available)
  • UL Approved Push Button Control Box
  • High Efficiency, Fully Enclosed Motor with Aggressive Aluminum Impeller
  • Static Pressure Gauge
  • Wheels for easy movement
  • Tool storage tray

Optional

  • Fume Arm Diameters: 6 in, 8 in
  • Fume Arm Lengths: 7 ft, 10 ft
  • HEPA Filter (for hexavalent chromium removal)
  • Carbon Filter
  • Halogen Light Kit
  • Three-Phase Motor

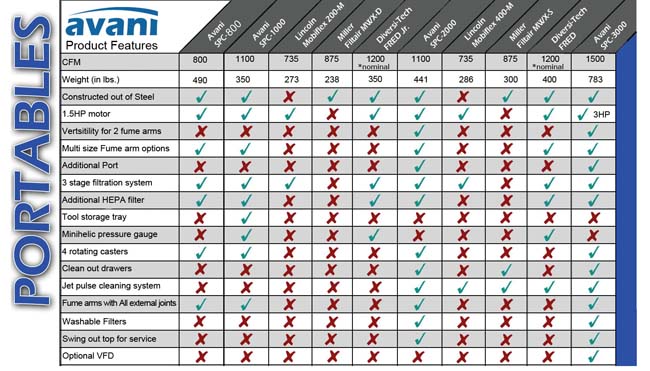

Portable Fume Collector Comparisons

click for portable collector comparisonclick for portable collector comparison

Product Booklet

Product Booklet Cover front page.jpg
