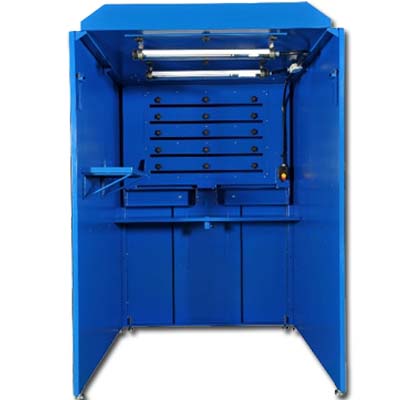

The WB-5000 series comes standard with 1 1/2" x 4" (rectangular tubing) skeleton with 12 gauge dual panels as the shell. The WB-5000 comes in standard sizes of 5'x5' or 6'x6'. Custom sizes are available to suit your needs. Ideal for use as a stand alone weld extraction booth or in a series easily integrated with a complete central ventilation and extraction system.
Models:
- WB-5055-S: 5' x 5' single booth
- WB-5055-D: 5' x 5' double booth
- WB-5066-S: 6' x 6' single booth
- WB-5066-D: 6' x 6' double booth
Standard Features:
- Double panel wall construction: 12 gauge welding steel
- Back draft and up draft capability with dampers
- Accommodates top mount filtered collector or external collector

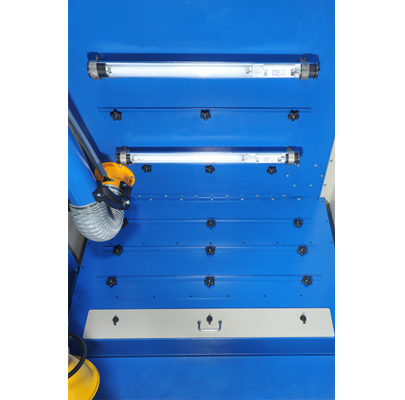

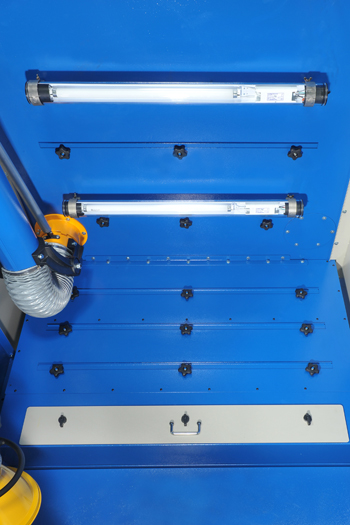

- Explosion proof lights
- 12 gauge panel construction
- Adjustable leveling feet with mounting plate
- Adjustable rear shelf
- Electrical outlet
- Fume arm inlets in ceiling (2 at 6" diameter)
- Side-to-side, back-to-back or stand alone installations
- Welding curtain rod
Optional Features:
- Custom sizes
- Fume collector top-mountable
- j-hooks
- Shelf for welder
- 6" diameter x 7' length fume arm
- Air/Gas Outlets
- VFD

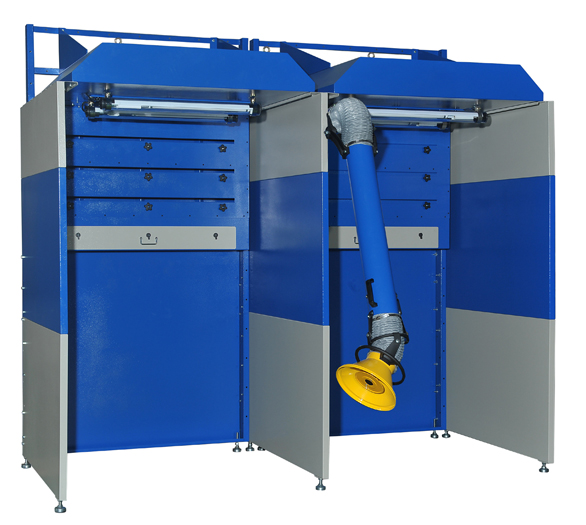

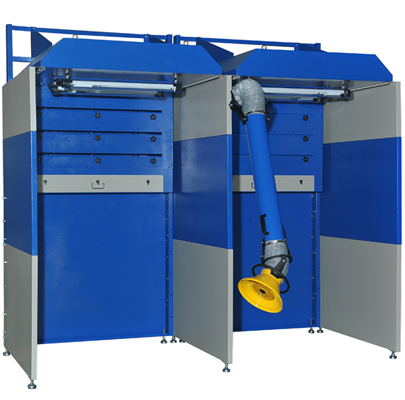

Note: Booths share a common interior panel. Booths can be mounted back to back and/or side to side. Based on configuration will share common walls.
Patent 8,247,738
