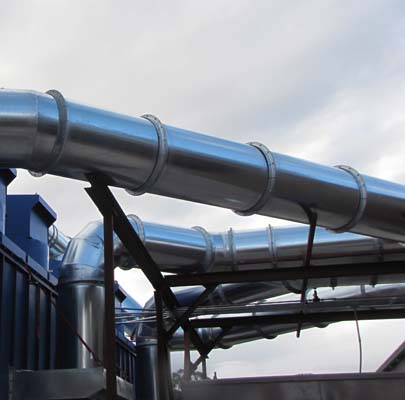

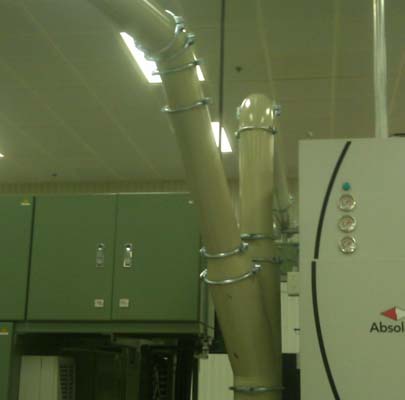

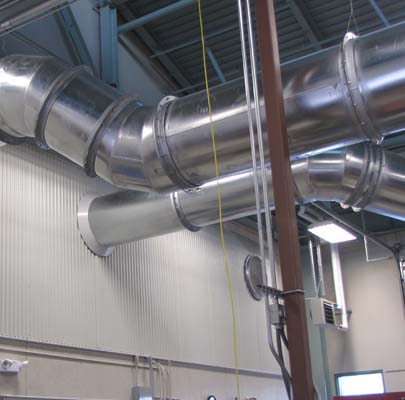

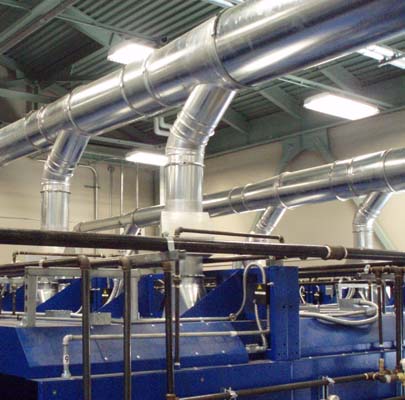

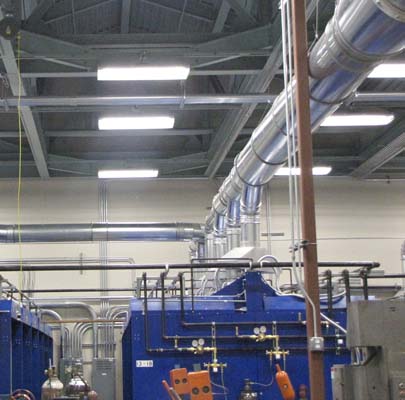

Avani Environmental uses clamp-together ducting for its environmental systems.

Product Description

 All parts are of standard sheet metal construction with a rolled lip applied to each end of the component. An all stainless over-center locking clamp is used to encompass the rolled lips, pull them together and then securely join them.Adapters enable connection to virtually and machine or existing duct. Clamp: The lifetime guaranteed clamp is fitted with a “winged O-ring” gasket made of N-butyl rubber.The gasket is designed to fully encompass the entirety of the rolled lips including the area formed by the “v” between the rolled lips.

Duct and Adjustability

The duct is a nominal 5’ length. Adjustable sleeves and adjustable components enable the installer to quickly make odd lengths and to adjust for a proper fit. To utilize this feature, a cut piece of pipe is slid into the sleeve or fitting and secured with an O-ring and standard clamp.

STANDARD PRODUCT

Materials

Material Duct and Components are available in galvanized, stainless (304-316) as a standard.

Gauges

Duct Standard Gauges for the duct are 26 ga for 3”, 24 ga for 4-6”, 22 ga for 7-12” and 20 ga for sizes 13-22”. Elbows are typically one gauge heavier than standard duct gauge. All components (branches, reducers etc) are of 18 ga material.

Specialized Ducting for Oil/Coolant Mist Industry

Avani Environmental, Inc. and Jacob Tubing have teamed up to offer the best solution for the oil/coolant mist industry.

The Jacob Tubing system is FAST to assemble and install due to our “quick-pull ring”, the specially designed “U” shape gasket allows for a TIGHT air-tight (LEAK-PROOF) seal, and the strength of the clamp allows for a SECURE fit (capable of withstanding explosion pressure resistance up to 3 bar). The modular tubing system easily adapts to existing systems and includes material strength of 10-19-gauge steel with finishes from powder coated, stainless steel, and galvanized.
