Self-contained air cleaning system
Ambient Filtration

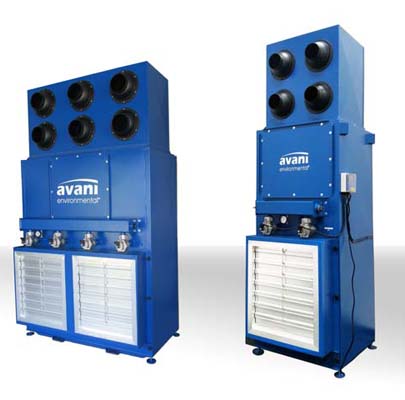

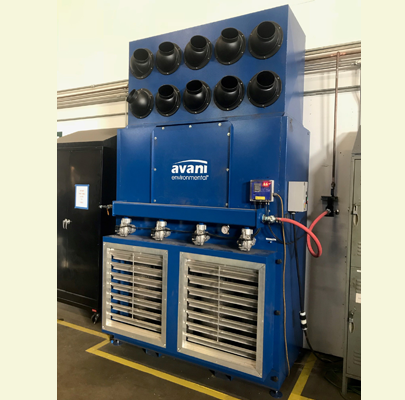

The ATAC series dust collector is a self-contained system with vertical positioned filters. Vertical up-flow design along with venturi assist reverse jet pulse cleaning provide ideal material release and favorable filter life. Units are specifically designed for ambient air cleaning applications and are equipped with adjustable discharge nozzles to deliver desired air flow patterns.
Filter technology specific to plant layout, contaminant generation and desired steady state flow patterns.
Efficient and effective
- Removes airborne dust from multiple sources
- Recirculates clean air, eliminating the need for expensive make-up air
- Reverse jet pulse design optimizes filter cleaning extending filter life
- Reduced installation ccosts
- No duct-work required!
- Simple and cost effective relocation with plant layout changes
Specifications
- Construction: 11 ga / 14 ga carbon steel welded
- Base Unit: Intake louvers, dust drawer, filters, fan, discharge plenum & nozzles, cleaning system and motor control with overload
- Inlet: Aluminum louver with back blast prevention
- Motor / Blower: TEFC motor with backward incline fan
- Pulse Control fully programable on-demand reverse jet pulse cleaning
- Sound rating: 78 dBA @ 5 ft
