Portable Fume Collector Comparisons

click for portable collector comparisonclick for portable collector comparison

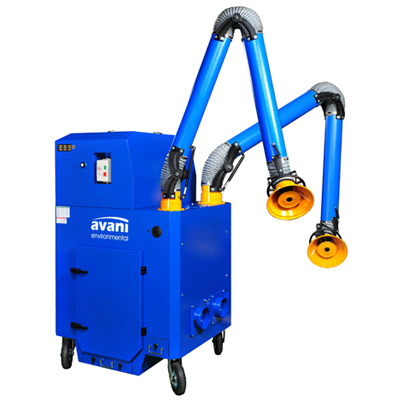

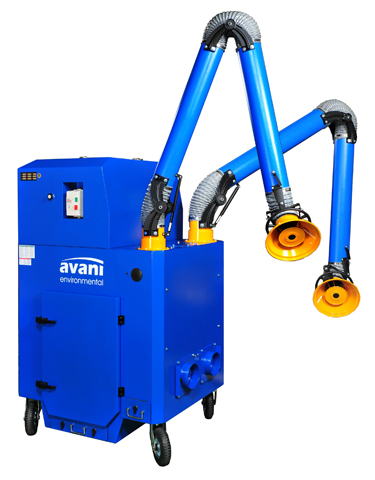

SPC-3000

Avani’s SPC-3000 portable air cleaners are designed to exhaust and filter dry air impurities. It combines a high efficiency motor with an aggressive aluminum impeller, allowing for increased filter media mass and even greater air flow (CFM) at the point of extraction. This product with its highly efficient filtering system makes it a perfect choice for welding, grinding, polishing, metal cutting, plastic production and many other fume extraction applications.

Specifications
Standard Features
Options
Submittal

Specifications

  • Air Flow: 1500 CFM
  • Filter Area: 760 sq. ft
  • Motor: 3 HP TEFC NEMA, Three-Phase, 460V
  • Dimensions: 49.4" l x 37.6" w x 71.1" h
  • Packing Dimensions: 52.2" l x 40.6 w x 76" h
  • Noise Level: 70 dBa @ 3.25'
  • Net Weight: 783 lbs

Standard Features

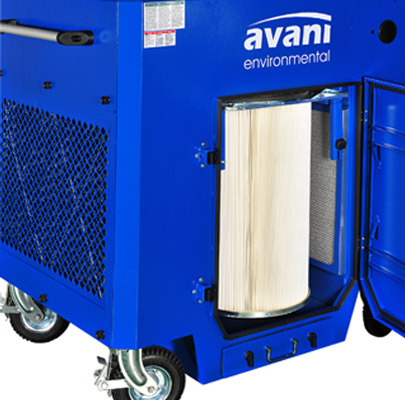

  • Three Stage Filtration System
  • Powder coated (custom colors available)
  • Filter Efficiency of 99% @ 1 micron
  • Manual Pulse Cleaning System
  • Magnehelic Static Pressure Gauge
  • UL Approved Control Box

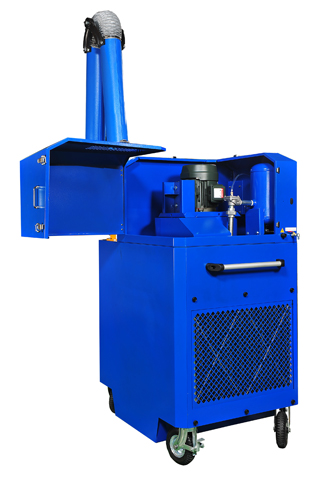

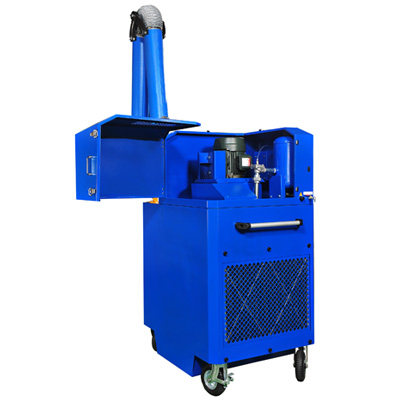

  • High Efficiency, Fully Enclosed Motor with Aggressive Aluminum Impeller
  • Dust Entrapment Tray
  • Large Casters for easy movement

Options

  • Fume Arm Choice #1: 6 in diameter at 7, 10, or 14 ft lengths
  • Fume Arm Choice #2: 8 in diameter at 7, 10, 14 ft lengths
  • Air Pressure Gauge
  • HEPA Filter (for hexavalent chromium)
  • Polyester Spun Bond Filter Cartridge
  • Halogen Light Kit
  • Variable-Speed Motor Drive
  • Oversized Casters
  • Multi-tray Carbon Filter
