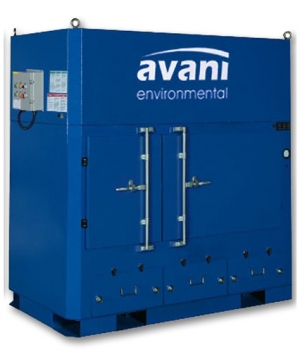

SDC-7D

Thursday, 17 November 2011 13:29

SDC-7D

Features:

All Welded Construction
Powder coat finish
On-line self cleaning
Integrated Control Panel
Direct drive, backward inclined fan
Static Pressure Gauge
80/20 FR cartridge media
Internal silencer fan housing
Built-in fork-lift slots and lifting lugs
Goyen valve

Optional:

HEPA after filter
Outdoor Cover
Fire Suppressant System
VOC Filtration
Wired at 230V

SDC-7D Specifications:

Motor: 7.5 HP / 460V / 60 Hz - 3 phase
Nominal Air Flow: 2500 CFM
# of Cartridges: 6
No. of Valves: 2
Compressed air requirements: 90 PSI
Dimension

SDT-7D-6: 89" x 42" x 121"

Drum Size: 55 Gallon x 2

Be the first to comment!

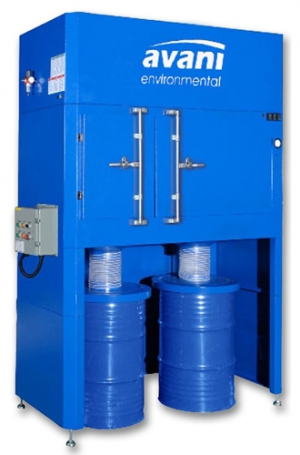

SDC-7

Thursday, 17 November 2011 13:25

SDC-7

Features:

All Welded Construction
Powder coat finish
On-line self cleaning
Integrated Control Panel
Direct drive, backward inclined fan
Static Pressure Gauge
80/20 FR cartridge media
Internal silencer fan housing
Built-in fork-lift slots and lifting lugs
Goyen valve

Optional:

HEPA after filter
Outdoor Cover
Fire Suppressant System
VOC Filtration
wired at 230V

SDC-7 Specifications:

Motor: 7.5 HP / 460V / 60Hz
Nominal Air Flow: 2500 cfm
# of Cartridges: 6
No. of Valves: 2
Compressed air requirements: 90 PSI
Dimension

SDT-7-6: 82" x 47" x 87"

Be the first to comment!

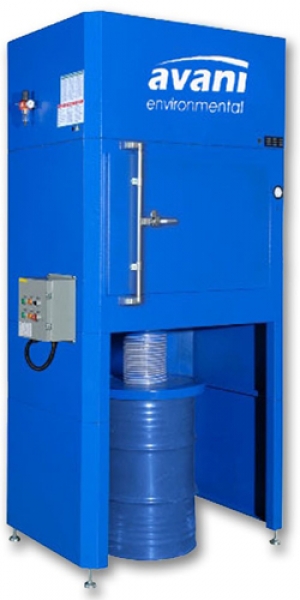

SDC-5D

Thursday, 17 November 2011 13:11

SDC-5D

Features:

All Welded Construction
Powder coat finish
On-line self cleaning
Integrated Control Panel
Direct drive, backward inclined fan
Static Pressure Gauge
80/20 FR cartridge media
Internal silencer fan housing
Built-in fork-lift slots and lifting lugs
Goyen valve

Optional:

HEPA after filter
Outdoor Cover
Fire Suppressant System
VOC Filtration
Wired at 230V

SDC-5D Specifications:

Motor: 5 HP
Nominal Air Flow: 2340 CFM
# of Cartridges: 4 or 6
Drum Size: 55 Gallon
Dimension

SDT-5D-4: 64" x 42" x 121"
SDT-5D-6: 89" x 42" x 121"

Be the first to comment!

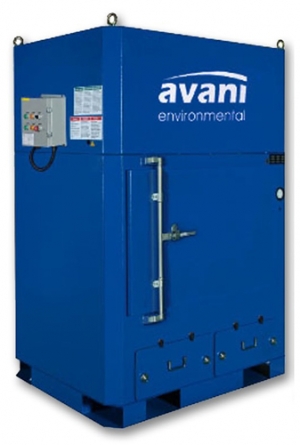

SDC-5

Thursday, 17 November 2011 13:09

SDC-5

Features:

All Welded Construction
Powder coat finish
On-line self cleaning
Integrated Control Panel
Direct drive, backward inclined fan
Static Pressure Gauge
80/20 FR cartridge media
Internal silencer fan housing
Built-in fork-lift slots and lifting lugs
Goyen valve

Optional:

HEPA after filter
Outdoor Cover
Fire Suppressant System
VOC Filtration
Optional
Wired at 230V

SDC-5 Specifications:

Motor: 5 HP
Nominal Air Flow: 2340 CFM
# of Cartridges: 4 or 6
No. of Valves: 2
Compressed air requirements: 90 PSI
Dimension

SDT-5-4: 57" x 42" x 87"
SDT-5-6: 82" x 47" x 89"

Be the first to comment!
