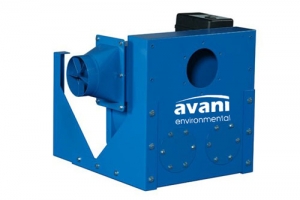

Industrial fans and blowers provide general ventilation in heavy-duty commercial and industrial applications including factories, warehouses, parking garages and vehicle repair facilities.

General Features:

• Various arm configurations
• Wallbracket, motor, control panel, remote control and timer
• Entire unit is powder coated steel

SBU-1.5 Specifications:

• Nominal Air Flow: 886 cfm
• Motor: 1.5 HP, single phase
• Dimensions: 24" x 23" x 22"
• Port Sizes: 1x 6" dia or 2x 4" dia
• Submittal for SBU-1.5

SBU-2 Specifications:

• Nominal Air Flow: 1618 cfm
• Motor: 2 HP, three phase
• Dimensions: 26" x 24" x 24"
• Port Sizes: 1x 6" dia or 1x 8" dia
• Submittal for SBU-2

SBU-3 Specifications:

• Nominal Air Flow: 1917 cfm
• Motor: 3 HP, three phase
• Dimensions: 29" x 27" x 27"
• Port Sizes: 2x 6" dia or 1x 8" dia
• Submittal for SBU-3

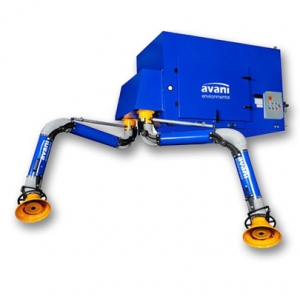

Industrial Air Cleaner

Ambient Units provide a convenient and economical way to filter air impurities in almost any location. To use, simply hang the unit in the desired location, plug in and turn it on. They have 3 speeds for general ventilation areas. The units are manufactured from heavy gauge steel, powder coated, with a built in control panel timer and a remote control. This model has the option of mounting three fume arms.

Specification:

• Nominal Air Flow: 2340 CFM
• Motor:5hp, High efficiency NEMA Motor, 460v
• Dimensions: 38"x38"x76"
• 2 stage filtration:
• (2) aluminum mesh (spark trap)
• (4) Spun bond polyester filters

Options:

• Arm base: (2)  6" diameter ports for fume arms
• Inlet separator

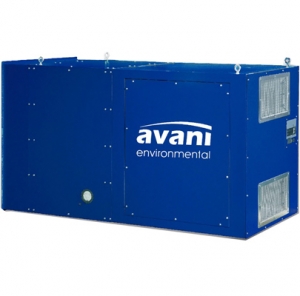

Industrial Air Cleaner

Ambient Units provide a convenient and economical way to filter air impurities in almost any location. To use, simply hang the unit in the desired location, plug in and turn it on. They have 3 speeds for general ventilation areas. The units are manufactured from heavy gauge steel, powder coated, with a built in control panel timer and a remote control.

Specification:

• Nominal Air Flow:
• Low - 2000 CFM
• Medium - 2500 CFM
• High - 3000 CFM
• Motor:  2 x .75 HP 120V / 60 Hz / 1 Ph
• Remote Control
• Dimensions: 58 l x 25 w x 31 h
• Packing Dimensions: 63.8 l x 29.1 w x 35.4 h
• Weight:   276 lbs
• Gross Weight: 353 lbs

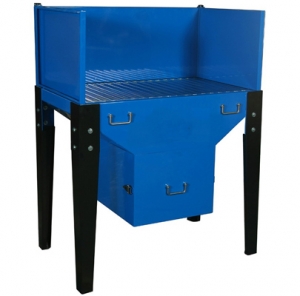

The SDT-180 is a versatile filter-less downdraft table that can be ducted to any filtration unit.  The biggest benefit of ducting a table to a dust collector vs. using a self-contained (units with fan and filters built in) table is you can properly size a fan as well as your air to media ratio.  Self-contained units are limited in space which limits the fan size as well as the amount of media that can be put in the unit.

Features:

• Internal Stainless Filter Drawer
• Connects to all Avani's portable filtration units
• Removable Steel Curtain to prevent flying sparks
• Built-in stainless filter drawer to collect steel chips
• Powder Coated Steel

Specifications:

• Inlet Dimension: 5"
• Dimensions: 40" x 28" x 51"
• Weight: 170 lbs

Size of table can be customized

Can be easily customized as a plasma table
