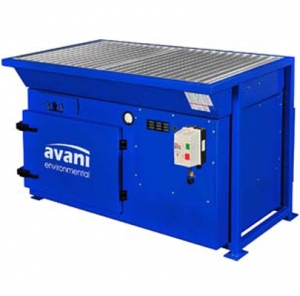

The SDT-1500 down draft table features a removable grated top and has a 5/8” fixture holding top. Used both as a work bench or extraction table for the removal of welding fume, grinding particulate and dust at the source.

Specifications:

• Welded Steel Construction
• Grated Table Top
• Explosion Proof Light
• Adjustable Feet
• Controls
• Differential Pressure Gauge
• Three Stage Filtration
• Nominal Air Flow: 1500 CFM
• Motor 2 HP TEFC NEMA
• Motor Power Supply: 460V / 60 Hz / 3 Phase
• Dimensions: 54"L x 39.6"D x 35"H
• Weight: 370 lbs

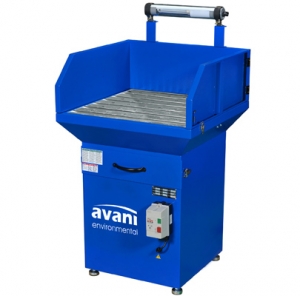

 The SDT-1400X is equipped with a 3 stage filtration system. Serves as an economical dual purpose work bench and extraction unit, designed for the removal of welding fumes at the source. It can also be used to remove particulate and dust from metal grinding applications.

Specifications:

• Welded Steel Construction
• Removable Side and Back Walls
• Grated Table Top
• Explosion Proof Light
• Controls
• Differential Pressure Gauge
• Three Stage Filtration
• Nominal Air Flow: 1400 CFM
• Motor 2 HP TEFC NEMA
• Motor Power Supply: 460V / 60 Hz / 3 Phase
• Dimensions: 33.5"L x 37"D x 60.4"H
• Weight: 227 lbs

Option:

• Motor Power Supply: 230V

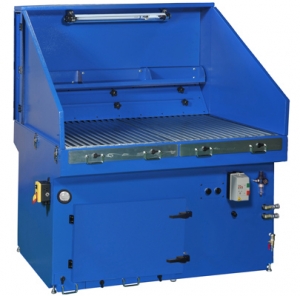

The SDT-7.5 features a removable grated table top and reverse jet pulse cleaning. It comes standard with a direct drive, backward inclined blower with an output of 2500 CFM and can be customized to fit your application's needs.

Specification:

• Nominal Air Flow: 2500 CFM
• Motor: 7.5 HP TEFC NEMA
• Motor Power Supply: 460V / 60 Hz / 3 Ph
• # of cartiridges: 6 teflon-coated polyester cartridge at 99.9% @ 1 micron
• Heavy Gauge powder coated steel
• Reverse Jet Pulse Cleaning
• UL approved control panel
• Easy access filter doors
• Venturis for high efficiency cleaning
• Differential pressure gauges

Options

• Back draft & side walls
• Explosion proof vents
• Stainless steel construction
• Silencers: inlet and outlet
• Rotary air lock
• Power tool outlets
• Assembly with lights

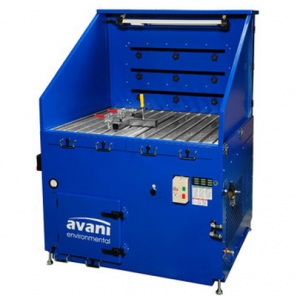

The  SDT-3 / SDT-5  downdraft table is Avani’s newest design with the welder in mind, featuring backdraft and downdraft exhaust and explosion proof lighting. This table is a great choice for plasma processes with heavy smoke. It utilizes a two-phase filtration system.

Standard Features:

• High Efficiency Re-usable Filter Cartridge
• Heave Gauge Powder Coated Steel
• Accepts 5/8" Jig Fixtures
• Manual Reverse Jet Pulse Cleaning
• UL Approved Control Panel
• Easy Access Filter Doors
• 2 Electrical Outlets
• Differential Pressure Gauges

Optional Features:

• Explosion Proof Light
• Exhaust 80% back draft and 20% downdraft
• Explosion Proof Vents
• Different Filter Media
• Silencers: inlet and outlet
• Rotary Air Lock
• Welding machine shelf
• Gas tank shelf
• Fume arm addition
• Customized Colors

Specification SDT-3:

• Nominal Air Flow: 1500 cfm
• Motor: 3 HP NEMA, Aluminum Impeller
• Compressed Air Requirement: 90 PSI
• Dimensions: 58"x47"x71"
• Weight: 1100

Specification SDT-5:

• Nominal Air Flow: 2340 cfm
• Motor: 5 HP NEMA, Aluminum Impeller
• Compressed Air Requirement: 90 PSI
• Dimensions: 58"x47"x71"
• Weight: 1200
