Avani's pivoting extension boom is designed to enlarge the area of reach of Avani products including self-supporting fume arms. The extension boom aids in reaching areas distant from a wall or other mounting areas.

Standard Features:

• Ball bearing movement
• Single pivot points
• Increases reach of equipment up to 20 ft
• Mount Avani's fume arms
• Heavy Gauge Steel
• Powder coated finish
• Top or bottom exhaust outlets

Specifications for Single Pivot:

• Diameter for mounting:  8 in
• Boom Length: 5 ft

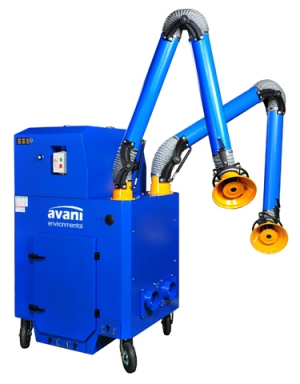

Avani’s SPC-5000 portable air cleaners are designed to exhaust and filter dry air impurities. It combines a high efficiency motor with an aggressive aluminum impeller, allowing for increased filter media mass and even greater air flow (CFM) at the point of extraction. This product with its highly efficient filtering system makes it a perfect choice for welding, grinding, polishing, metal cutting, plastic production and many other fume extraction application

Standard Features:

• Three Stage Filtration System
• 8 in diameter fume arm at 7, 10, or 14 ft lengths
• Powder coated (custom colors available)
• Filter Efficiency of 99% @ 1 micron
• Manual Pulse Cleaning System
• UL Approved Control Box
• High Efficiency, Fully Enclosed Motor with Aggressive Aluminum Impeller
• Dust Entrapment Tray
• Wheels for easy movement

Specifications:

• Air Flow: 2340 CFM
• Filter Area: 760 sq. ft
• Motor: 5 HP TEFC NEMA, Three-Phase, 460V
• Dimensions: 49.4" l x 37.6" w x 71.1" h
• Packing Dimensions: 52.2" l x 40.6" w x 76" h
• Noise Level: 77 dBa @ 3.25'
• Net Weight: 783 lbs

Optional Features:

• Minihelic Static Pressure Gauge
• Air Pressure Gauge
• HEPA Filter (for hexavalent chromium)
• Polyester Spun Bond Filter Cartridge
• Carbon Exhaust Filter
• Halogen Light Kit
• Variable-Speed Motor Drive
• Oversized Casters
• Activated Carbon Filter

Submittal for SPC-5000

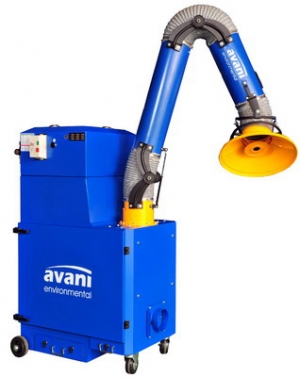

Avani’s SPC-3000 portable air cleaners are designed to exhaust and filter dry air impurities. It combines a high efficiency motor with an aggressive aluminum impeller, allowing for increased filter media mass and even greater air flow (CFM) at the point of extraction. This product with its highly efficient filtering system makes it a perfect choice for welding, grinding, polishing, metal cutting, plastic production and many other fume extraction applications.
