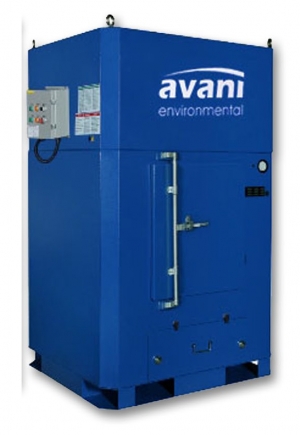

SDC-3D

Thursday, 17 November 2011 13:03

Features:

  • All Welded Construction
  • Powder coat finish
  • On-line self cleaning
  • Integrated Control Panel
  • Direct drive, backward inclined fan
  • Static Pressure Gauge
  • Cartridge Efficiency is 99% at 1 micron
  • Internal silencer fan housing
  • Built-in fork-lift slots and lifting lugs
  • Goyen valve

Optional:

  • HEPA after filter
  • Outdoor Cover
  • Fire Suppressant System
  • VOC Filtration
  • Optional 80/20 FR cartridge media
  • wired at 230V

SDC-3D Specifications:

  • Motor: 3 HP / 460V / 60Hz
  • Nominal Air Flow: 1500 CFM
  • # of Cartridges: 2 or 4 - 80/20 FR filtering area 538 ft sq / 1076 ft sq
  • Inlet Size: 8 inch dia
  • Drum Size: 55 gallon
  • Dimension
    • SDT-3D-2: 51" x 42" x 121"
    • SDT-3D-4: 64" x 42" x 121"

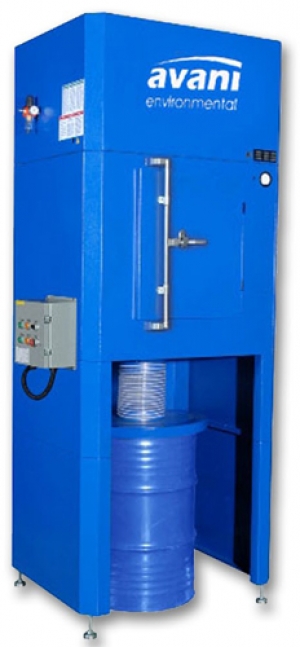

SDC-3

Thursday, 17 November 2011 13:00

Features:

  • All Welded Construction
  • Powder coat finish
  • On-line self cleaning
  • Integrated Control Panel
  • Direct drive, backward inclined fan
  • Static Pressure Gauge
  • 80/20 FR cartridge media
  • Internal silencer fan housing
  • Built-in fork-lift slots and lifting lugs
  • Goyen valve

Optional:

  • HEPA after filter
  • Outdoor Cover
  • Fire Suppressant System
  • VOC Filtration
  • Wired at 230V

SDC-3 Specifications:

  • Motor: 3 HP / 460V / 60 Hz - 3 phase
  • Nominal Air Flow: 1500 CFM
  • # of Cartridges: (2) or (4) -  80/20 FR filtering area 538 ft sq / 1076 ft sq
  • No. of Valves: 1
  • Compressed air requirements: 90 PSI
  • Dimension
    • SDT-3-2: 44" x 41" x 87"
    • SDT-3-4: 57" x 42" x 87"

Applications

Monday, 07 November 2011 12:58

Welding

Whether you are using Stick, TIG or MIG welding, Avani has a product to meet your fume filtration or extraction needs. Avani provides a "Point of Origin" extraction for welding fumes and smoke with Avani's Fume Arms. Contact Avani about OSHA's latest regulations in the welding industry.

Grinding

Avani's wide array of downdraft tables provide efficient filtration and extraction for almost all grinding applications. Avani's downdraft table family allows the user the option to filter out the air contaminants and re-circulate the air or simply extract the air contaminants to a location away from the user.

Laser/Plasma Cutting

Laser plasma cutting uses a concentrated electrical arc which melts the material through a high-temperature plasma beam. From Downdraft tables to fume arms, Avani can provide the cutting surface or can extract the particulate at the source.

Robotic System Fume Extraction

Automated systems often require fume extraction to keep the rest of the work place free from harmful byproducts of the machinery. Fume extraction can be handled with a large overhead collector or by the use of fume arms.

Corrosive and Explosive Dust

These air-contaminants present a very dangerous and possible deadly consequence if inhaled or are not properly filtered. Call an Avani Representative for more detailed information on your specific corrosive or explosive dust.

Mist/Oily Particulate

For small systems and single machines, Avani has the most economical Oil and Mist collectors on the market. Ask about OSHA's latest regulations.

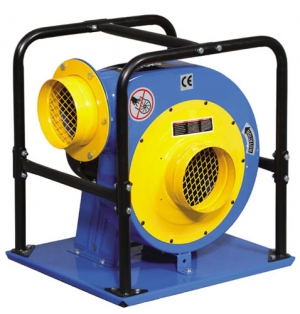

SPB-900

Friday, 04 November 2011 09:41

Specification:

  • Nominal Air Flow: 900 cfm
  • Motor: 1.5 HP
  • Inlet Dimension: 5" dia
  • Dimensions: 21" x 18" x 22"
  • Weight: 77 lbs



Product Booklet

Product Booklet Cover front page.jpg

This email address is being protected from spambots. You need JavaScript enabled to view it.

Applications

Employment Opportunties

Presently, there are no open positions.
